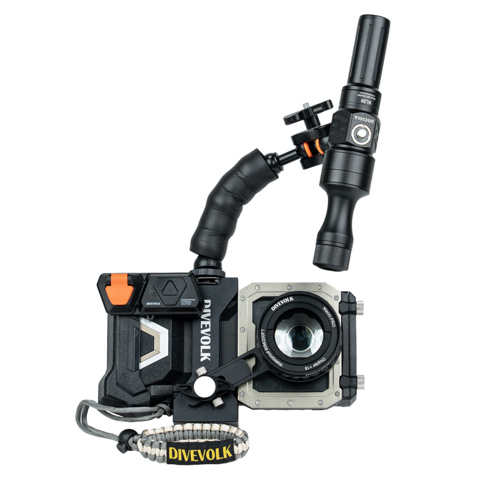

DiveVolk SeaTouch 4 Max Plus Advance Macro Kit

SKU: DVKADMCRSKIT MFR: DAFMSB
Earn VIP Reward Points

Key Features

  • Capture stunning underwater photos and videos with your smartphone, waterproof up to 200' (60m).
  • Experience crystal-clear macro photography with the powerful 18-diopter lens, perfect for tiny marine life.
  • Enjoy precise control and easy access to your smartphone's functions through the sensitive touchscreen up to 100' (30m).
  • Illuminate your underwater world with the integrated 2000-lumen video light, ensuring vibrant colors and sharp details.
  • Benefit from robust durability with aviation aluminum alloy construction, designed for adventurous dives.
  • Effortlessly attach accessories like external lights and arms using the versatile M67 mount and cold shoe options.
See More Product Details
Temporarily On Backorder?Expected Availability: 06/2026Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

DiveVolk SeaTouch 4 Max Plus Advance Macro Kit Specifications

Housing

Housing

Jump to...
  • Compatibility

    iPhones & Android Smartphones

  • Waterproof

    200' (60m)

  • Sensitive touchscreen

    100' (30m)

  • Touch Screen Life

    100,000 times

  • Mobile phone lens thickness

    <= 0.6" (15mm)

  • Applicable to

    Smartphone models within 7 x 3.2 x 0.4" (180 x 82.5 x 11.2mm) (L x W x Thickness)

  • Dimensions

    8.90 x 4.72 x 1.73" (226 x 120 x 44mm)

  • Weight

    On land: 13.23 oz (375g)
    Underwater: Approx. 5.29 oz (150g)

  • Lens Barrel

    Aluminum with anodizing

  • Glass / Coating

    Optical glass with multi-layer BBAR coating

  • Lens Construction

    3 elements, 3 groups

  • Diopter

    18

  • Focusing Range

    1.18 - 2.09" (30 - 53mm)

  • Max. Magnification

    3x

  • Mounting

    M67

  • Waterproof

    200' (60m)

  • Use environment

    0-40 Degrees

  • Dimensions

    2.84 x 1.26" (72 x 32mm)

  • Weight

    On land: 10.58 oz (300g)
    Underwater: 4.41 oz (125g)

Video Light

Jump to...
  • Housing Material

    Aviation aluminum alloy with military-grade oxidation (Type III)

  • Lens

    4mm toughened ultra-clear glass with diamond coating

  • Waterproof Depth Rating

    Up to 100m (withstands 20PA pressure)

  • LED Lifespan

    Up to 50,000 hours

  • Color Temperature

    CCK: 5600K
    CRI: 83
    R9: 54
    TCLI: 79

  • Modes

    High light 100%
    Low light 50%- Red/UV

  • Working Voltage

    2.7-4.5V

  • Maximum Output of Brightness

    High light (100%) 2000 lumens
    Low light (50% )1000 lumens

  • Runtime

    High light (100% ) 150 minutes
    low light (50% ) 300 minutes

  • Battery Pack Capacity

    18.5Wh (3.7V-5.0Ah)

  • Charging Time

    About 3 hours

  • Beam Angle

    100 Degree

  • Power Indicator

    >70% Green
    30% - 70% Yellow
    <=30% Red

  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Type

    26650

  • Battery Quantity

    1

  • Dimensions

    Length: 5.2" (131mm)
    Body: 1.3" (32.5mm)
    Head: 1.6" (42mm)

  • Weight

    9.2 oz (260g) (with Battery)

Clamp & Lens Adapter

Jump to...
  • Material

    Aviation aluminum alloy with military oxidation

  • Compatibility

    Seatouch 4 Max Plus Housing

  • Mount

    2x M6
    2x 1/4"
    Cold shoe
    M67

  • Weight

    On land: 9.7 oz (275g)
    Underwater: 6.28 oz (178g)

Shutter

Jump to...
  • Compatibility

    SeaTouch 4 Max Series Housing

  • Connectivity

    Bluetooth

  • Waterproof Depth

    200' (60m)

  • Battery Info

    Required, Included

  • Battery Material

    Lithium

  • Battery Type

    CR2032

  • Battery Quantity

    1

  • Material

    Aluminum and optical glass

  • Mount

    Threaded

  • Compatibility

    SL20 underwater video light

Flexible Arm

Jump to...
  • Material

    Plastic body with metal ball head and cold shoe connector, Wrapped by EVA foam

  • Full length

    7.09" (18cm)

Ball Joint Clamp

Jump to...
  • Material

    Aluminum clamp
    316 stainless still screws

  • Ball Center Distance

    1.96" (5cm)

Travel Case

Jump to...
  • Material

    Eva foam

  • Dimensions

    9.84 x 5.91 x 3.74" (25 x 15 x 9.5cm)

  • UPC Code

    6976208960979

About DiveVolk SeaTouch 4 Max Plus Advance Macro Kit

- SeaTouch 4 Max Plus Underwater Smartphone Housing -

Full Touchscreen Access Without Limitations
Experience a new standard of device usability with a full touchscreen dive housing that allows complete interaction with your smartphone below the surface. Unlike traditional button based cases, this advanced solution enables seamless access to menus, camera controls, and applications through direct screen operation at depths of up to 60 m. Every tap, swipe, and adjustment remains intuitive, helping divers capture photos, record video, and operate apps naturally while exploring aquatic environments.

Communication, Navigation, and Safety Support
Practical functionality extends beyond imaging with integrated capabilities that support communication and navigation. At the surface, users can access GPS location and compass features to stay oriented and aware of surroundings. The ability to make emergency phone calls adds reassurance during critical situations, while writing board applications provide a simple method to communicate with dive buddies. Compatibility with tools such as fish identification apps further enhances real world usefulness during exploration..


- Macro Pro +18 Lens -

Explore Fine Underwater Detail with Strong Macro Capability
Capture minute marine subjects with an underwater macro lens +18 that delivers enhanced close focus performance for underwater photography and videography. The a +18 diopter magnification significantly reduces minimum focusing distance, allowing precise documentation of textures and small underwater organisms. Compatible with underwater housing and compact camera setups, this underwater close up lens +18 expands smartphone imaging capability for detailed macro exploration beneath the surface.

Optical Clarity for Precise Close Range Imaging
Coated optical glass construction supports light transmission and image clarity during extreme close focus shooting. This underwater macro photography lens enables accurate capture of delicate underwater details, helping preserve subject definition when photographing or filming small aquatic life. As an optical wet macro lens for diving, it enhances macro capability while maintaining straightforward integration with compatible camera systems.


- SL20 Underwater Video Light -

Powerful Illumination for Underwater Filming
Experience unmatched visibility on every dive with the Divevolk SL20 Video Light, engineered to deliver up to 2000 lumens of crisp, high-intensity brightness. This underwater video light features dual power modes-2000 lumens for 150 minutes and 1000 lumens for 300 minutes-providing versatile illumination for every scenario. Whether you're capturing marine life at dusk or exploring shipwrecks, this scuba dive light ensures dependable brightness throughout your adventure.

Dual Mode Lighting with Red Light Feature
Switch between high-power and low-power modes to adapt to different dive conditions. The red light feature minimizes disturbance to marine life and preserves natural underwater colors in your footage. Ideal for both professionals and enthusiasts, the Divevolk dive light for underwater filming enhances focus and ambient clarity while maintaining energy efficiency. It's a reliable choice for night dives and low-visibility environments.


- Expansion Clamp with 67mm Lens Adapter -

Expand Your Underwater Photography Setup
Enhance your housing capabilities with an underwater housing clamp designed for flexible rig building with the Seatouch 4 Max Plus system. This DiveVolk expansion clamp integrates multiple mounting options into one accessory, allowing attachment of wet lenses, filters, trays, and lights for varied underwater photography scenarios. The adjustable length 67mm lens adapter supports alignment across different camera positions, helping create a complete and adaptable shooting configuration.

Multi Mount Convenience in One Compact Accessory
Designed for versatility, this underwater photography clamp combines dual M6 thread holes, dual 1/4" threaded mounts, and an integrated cold shoe connector to support a wide range of accessories. The clamp attaches securely to the housing and enables connection of lenses, filters, trays, tripods, selfie sticks, and lighting equipment without additional adapters. This expansion clamp provides 4 mounting types in a single solution, supporting organized and efficient underwater rig setups.


- Underwater External Shutter -

Wireless Shutter Control for Photo and Video Capture
Capture photos and videos with an underwater external shutter designed for the SeaTouch 4 Max series housing. This SeaTouch 4 Max external shutter connects via Bluetooth to control camera shutter functions and access third party photography apps, supporting operation on land and underwater. The compact shutter key provides convenient remote control, helping users trigger capture without direct interaction with the device interface.

Flexible Installation with Efficient Power Management
Multiple installation methods allow this external shutter to be mounted on SeaTouch 4 Max housing or compatible dual handle trays, adapting to different shooting setups. Ultra low power consumption supports efficient operation, while an automatic sleep mode powers off the device after 10 minutes of inactivity. This dive housing external shutter delivers reliable wireless control across varied usage scenarios.


- Snoot -

Precision Beam Control for Subject Highlighting
Achieve targeted illumination with an underwater snoot for video light that concentrates light into a controlled beam for precise subject highlighting. Designed for SL20 compatibility, this SL20 snoot attachment uses an integrated lens structure to gather and focus light output up to 2000 lumens, helping create high contrast imagery. The narrowed beam enables dramatic black background effects, allowing underwater subjects to stand out distinctly within their natural surroundings.

Simple Installation with Optical Performance
A threaded attachment structure supports easy installation onto compatible video lights, simplifying setup during dives. This underwater photography snoot combines convenient mounting with optical beam shaping, delivering consistent focused illumination for macro scenes, coral details, and marine life encounters. The integrated lens design supports effective light concentration, enhancing visual impact while maintaining straightforward usability.


- Flexible Arm -

Flexible Positioning for Underwater Lighting Control
Enhance lighting control with a flexible arm with cold shoe designed to support underwater photography light mounting and angle adjustment. This underwater flexible arm features a secure cold shoe connection that attaches to the cold shoe mount of an expansion clamp, providing a stable base for lighting accessories. An anti slip valve reinforces grip strength, helping maintain secure positioning and reducing the risk of loosening during use.

Versatile Mounting with Comfortable Handling
A universal ball head supports compatibility with a wide range of underwater photography lights, enabling precise positioning for creative illumination. The adaptable structure allows flexible lighting angles and provides suitable length for top lighting setups, while EVA foam wrapping adds a comfortable grip for improved handling. This cold shoe flexible arm combines versatility, stability, and ergonomic design to support effective lighting placement across underwater imaging scenarios.


- Ball Joint Clamp -

Elevate Your Underwater Captures
Discover the strength and versatility of the DiveVolk Ball Joint Clamp, your essential companion for underwater photography. Constructed with premium-grade aluminum, this clamp is your go-to for connecting dual ball heads with unmatched ease. Whether you're attaching lighting to your DiveVolk Tray or securing your camera for the perfect shot, this clamp is designed for seamless integration and unparalleled stability.

Seamless Adaptability for Divers
This heavy-duty ball joint clamp is a must-have for every diver's toolkit, offering adjustable grip and easy integration with your existing dive gear. The DiveVolk clamp brings adaptability to your underwater excursions, allowing you to capture the ocean's majesty without worry.

DiveVolk SeaTouch 4 Max Plus Advance Macro Kit Features

  • SeaTouch 4 Max Plus Underwater Smartphone Housing
  • Full touchscreen access enables complete smartphone control at depths up to 60 m
  • Camera operation remains unrestricted for photos, videos, and advanced capture modes
  • Compatible with photography, communication, and utility apps for expanded functionality
  • Surface calling capability supports emergency communication when required
  • GPS and compass access available at the surface for navigation awareness
  • Audio and video playback capability allows media review during dives
  • Bluetooth and Wi Fi connectivity supports wireless device interaction
  • Designed to fit latest iPhone models and most Android smartphones
  • Accessory integration supports lenses, filters, and imaging add ons
  • Suitable for diving, snorkeling, swimming, surfing, kitesurfing, and jet skiing
  • Macro Pro +18 Lens
  • Strong +18 magnification reveals tiny underwater subjects
  • Reduced focusing distance enables precise close up framing
  • Captures intricate marine textures and organism details
  • Coated optics support clear and detailed macro imagery
  • Durable construction withstands harsh marine environments
  • Corrosion resistant housing supports repeated dive use
  • Enhances smartphone and compact camera macro capability
  • Supports both photography and videography workflows
  • Useful for documenting delicate aquatic ecosystems
  • Expands creative possibilities in underwater macro shooting
  • SL20 Underwater Video Light
  • Max output 2000 lumens with 150-minute runtime
  • Low-power 1000 lumens mode runs for 300 minutes
  • Red light mode for ambient fill and low impact
  • Waterproof up to 100 meters for deep diving
  • 100 Degree wide beam angle for broad illumination
  • Ultra-clear diamond-coated 4mm lens for sharp focus
  • Military-grade aluminum body for rugged use
  • Rechargeable 26650 battery with 3-hour charge time
  • Compact 260g weight ideal for travel
  • Power indicator with green, yellow, red LED alerts
  • Expansion Clamp with 67mm Lens Adapter
  • Multi mount clamp combines several accessory connection points
  • 2 M6 threaded ports support compatible accessory mounting
  • Dual 1/4" threads expand mounting compatibility
  • Integrated cold shoe allows attachment of lights or accessories
  • Adjustable M67 adapter supports varied camera alignment
  • Compatible with wet lenses, filters, trays and lighting equipment
  • Supports tripod, selfie stick and tray integration
  • Designed for underwater imaging accessory expansion
  • Underwater External Shutter
  • Bluetooth connectivity enables wireless shutter control
  • Supports photo and video capture via remote operation
  • Compatible with third party photography apps
  • Usable on land and underwater
  • Multiple installation methods support varied setups
  • Mountable on SeaTouch 4 Max housing and dual handle tray
  • Ultra low power consumption supports efficient use
  • Auto sleep mode activates after 10 minutes inactivity
  • Tested for over 100,000 keypress cycles
  • Waterproof to 200 ft (60 m) for underwater operation
  • Snoot
  • Focused beam concentrates illumination onto subject
  • Integrated lens structure delivers up to 2000 lumens
  • Supports high contrast imagery with dark background effect
  • Threaded design allows easy attachment
  • Compatible with SL20 video light systems
  • Provides mounting structure for color filter wheel
  • Enables creative color lighting effects
  • Supports photography and videography applications
  • Helps achieve professional quality lighting results
  • Flexible Arm
  • Cold shoe connection supports secure mounting to expansion clamp
  • Universal ball head supports compatibility with underwater lights
  • Flexible structure enables precise lighting angle adjustment
  • Suitable length supports top lighting positioning
  • Anti slip valve helps prevent equipment loosening
  • EVA foam wrap provides comfortable handling grip
  • Supports creative lighting placement during underwater shooting
  • Ball Joint Clamp
  • Crafted with high-quality aluminum
  • Simplifies dual ball head connection
  • DiveVolk tray compatibility
  • Optimal for capturing underwater scenes
  • Tailored adjustability for any angle
  • Sturdy design for reliability
  • Enhances standard diving setups

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning underwater photos and videos with your smartphone, waterproof up to 200' (60m).
  • Experience crystal-clear macro photography with the powerful 18-diopter lens, perfect for tiny marine life.
  • Enjoy precise control and easy access to your smartphone's functions through the sensitive touchscreen up to 100' (30m).
  • Illuminate your underwater world with the integrated 2000-lumen video light, ensuring vibrant colors and sharp details.
  • Benefit from robust durability with aviation aluminum alloy construction, designed for adventurous dives.
  • Effortlessly attach accessories like external lights and arms using the versatile M67 mount and cold shoe options.

What's in the box:

  • SeaTouch 4 Max Plus Underwater Smartphone Housing
  • Macro Pro +18 Lens
  • SL20 Underwater Video Light
  • Expansion Clamp with 67mm Lens Adapter
  • Underwater External Shutter
  • Snoot
  • Flexible Arm
  • Ball Joint Clamp
  • Protective Cover
  • Travel Case
